Condensate cleaners

During the compression process air is compressed to typically 7 bar, which provides an eight fold greater water loading than conventional air at normal atmospheric pressures. This additional moisture is then also processed out to become condensate from the dryers and filters, but this condensate also contains droplets from the compressor oil, which together cause a toxic cocktail.

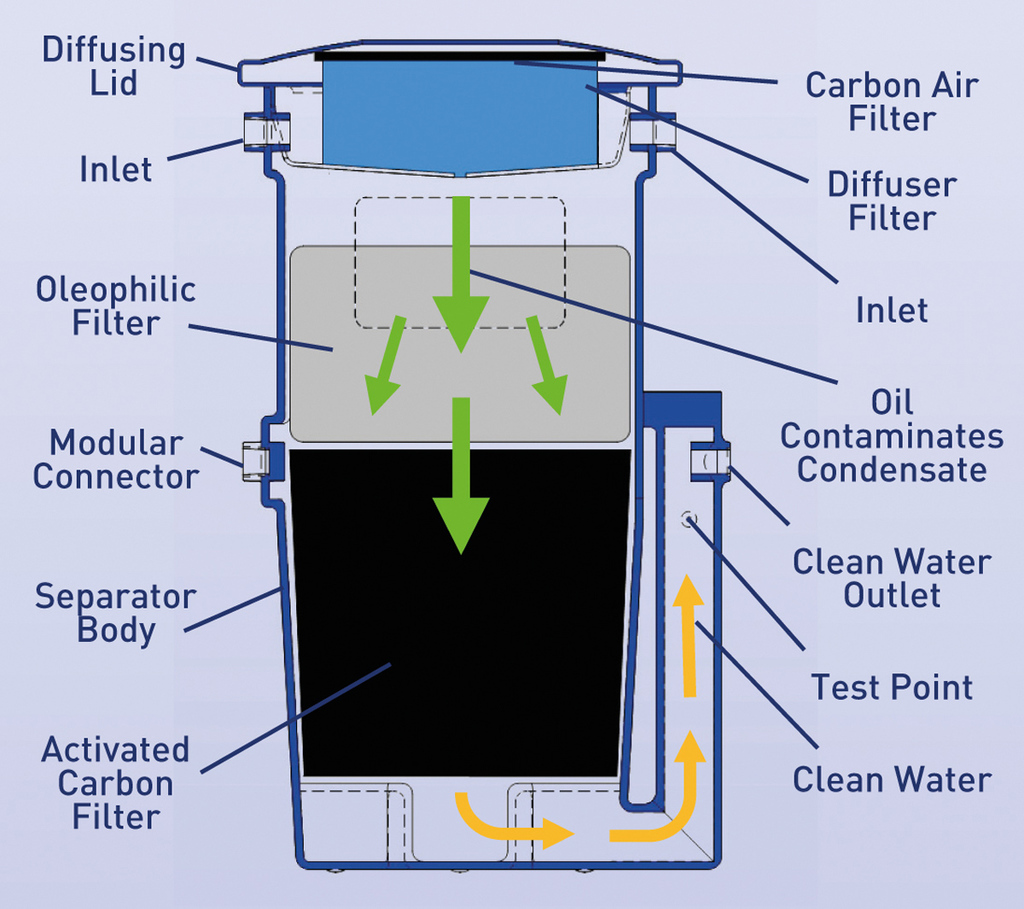

However, the Hi-line ConSEP range of condensate cleaners treat the condensate with flocculants and activated carbon in an adsorption phase. This purifies the condensate, so providing a clean water solution which is clean enough to supersede local water authority regulations which stipulate a contaminant content of less than 5mg/litre.

Hi-line Industries have recently developed this process, which is a new concept in the treatment of compressor condensate discharge. Their latest ConSEP products also provide a 10% higher volumetric capacity than their previous Gen 2 range, enabling the utilisation of greater oleophilic as well as superior activated carbon filtration media. The increased service life achieved by these products is also backed-up by this established midlands manufacturer, providing a lifetime warranty against leaks or product malfunctions.

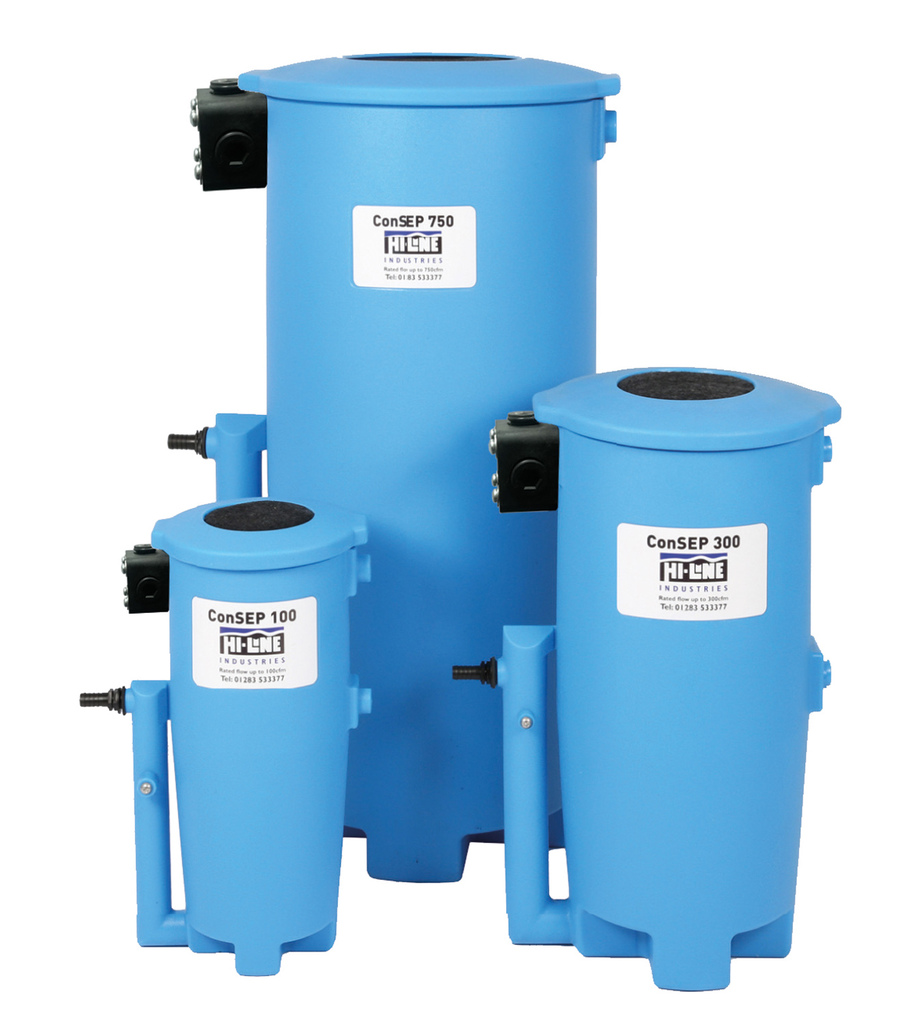

The ConSEP condensate cleaner range comprises five models, covering flow capacities of 60/100/300/750 and 1500 cfm respectively.
