Crane for paperboard manufacturer

Part of the Swedish Holmen Group, Iggesund manufactures high quality folding box board products, which are used for the premium packaging and graphics markets.

The crane installation was part of an investment in new and upgraded board production facilities, to increase output by 20,000 tonnes per year. The crane was required due to the increased size and weight of the rolls in the new equipment.

The Iggesund production line operates 24 hours a day for 365 days per year, with a reel of board coming off the production line every 30 minutes, meaning that maximum availability and reliability of the material handling system is fundamental to the efficiency of the plant. To meet the specific requirements of Iggesund’s production processes, Demag engineers designed a complex reel handing crane, with a range of application focused features.

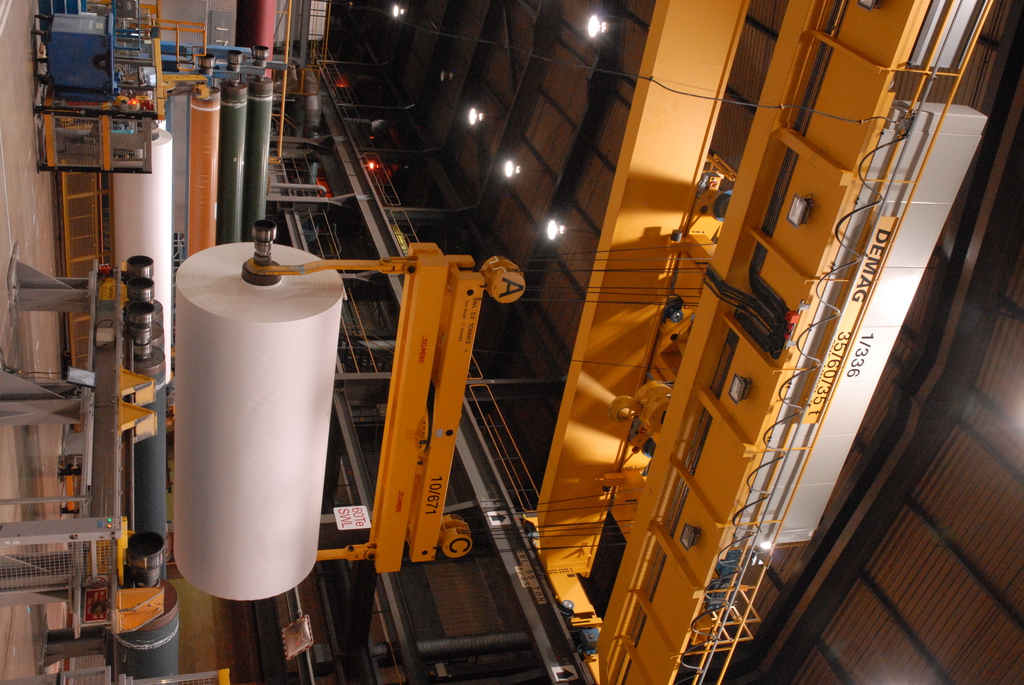

The solution is a 60 t SWL, 20.4 m span crane equipped with multiple hoists. These consist of two outer 35 t SWL open winch crabs and a central 60 t open winch crab. A 52 t SWL power slew lifting beam is also part of the installation and is suspended from either the central hoist or the two outer hoists. The slewing beam is required to lift reels of paperboard and may be lifted by either the 2 x 35t hoists or the 60t hoist. This gives operational flexibility and back-up lifting capacity in the event of a hoist failure. In addition, each crab is also fitted with an auxiliary Demag wire rope hoist, rated at 5 t SWL, for faster maintenance functions.

The Demag crane is capable of travelling along the full 257 m of the paperboard production line, facilitating a wide range of operational and maintenance functions, but its primary role is the unloading of full reels from the board manufacturing line.

To accommodate the requirement for smooth movement of loads and precision positioning accuracy, the crane features frequency inverters. It has cross travel speeds of 5 to 15 m/min, long travel speeds of 5 to 40 m/min and hoisting speeds of 0.5 to 5.5 m/min, for loads greater than 30 t, or 0.5 to 8.4 m/min for loads of less than 25 t, providing fast and efficient load handling. The crane system is operated by radio remote control or mobile pendant.
